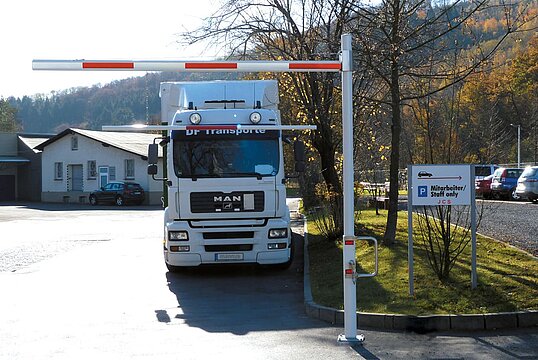

Rotatable height limit HBS 50

Höhenbegrenzung zum Aufdübeln oder Einbetonieren
  • Rotatable height limit with adjustable clearance height up to 2.8 m above floor level
  • Total height 3.0 m above floor, optionally 4.0 m
  • All steel components hot-dip galvanized
  • Rotating post made of steel tube Ø121x 4.0 mm, stepped down to 101.6 x 2.9 mm at the top
  • Aluminum barrier beams 86 x 46 mm, with sign and advertising baffle
  • cable reinforcement
  • Optionally with support 70 x 40 x 3 mm, height adjustable +250 / -0 mm
  • Fixing by dowelling or setting in concrete
  • Type widths from 3.000 to 12.000 mm

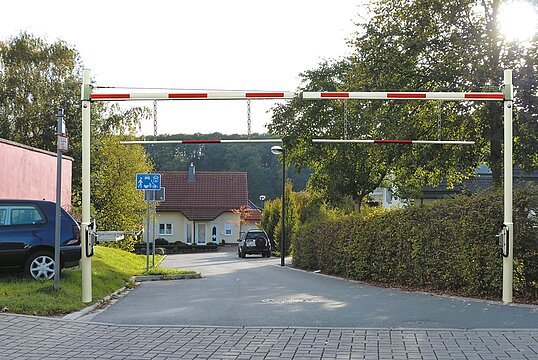

  • From 6000 mm opposite arrangement, corresponding to 2 single units
  • Stainless steel swivel bracket
  • Operating height 0.7 m above floor
  • Lockable by padlock (accessory)
  • All 90° rotation angles on main support
  • Alternatively lockable by fire department triangular and/or profile cylinder lock incl. automatic locking device
  • Accessories: barrier suspension, storage support, storage support with locking device
Downloads Product info (123 KB) Foundation plan (dowel-on) (86 KB) Foundation plan (set in concrete) (80 KB) Mounting instructions (312 KB)
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Height limiter Rotatable height limit HBS 50\')}')}

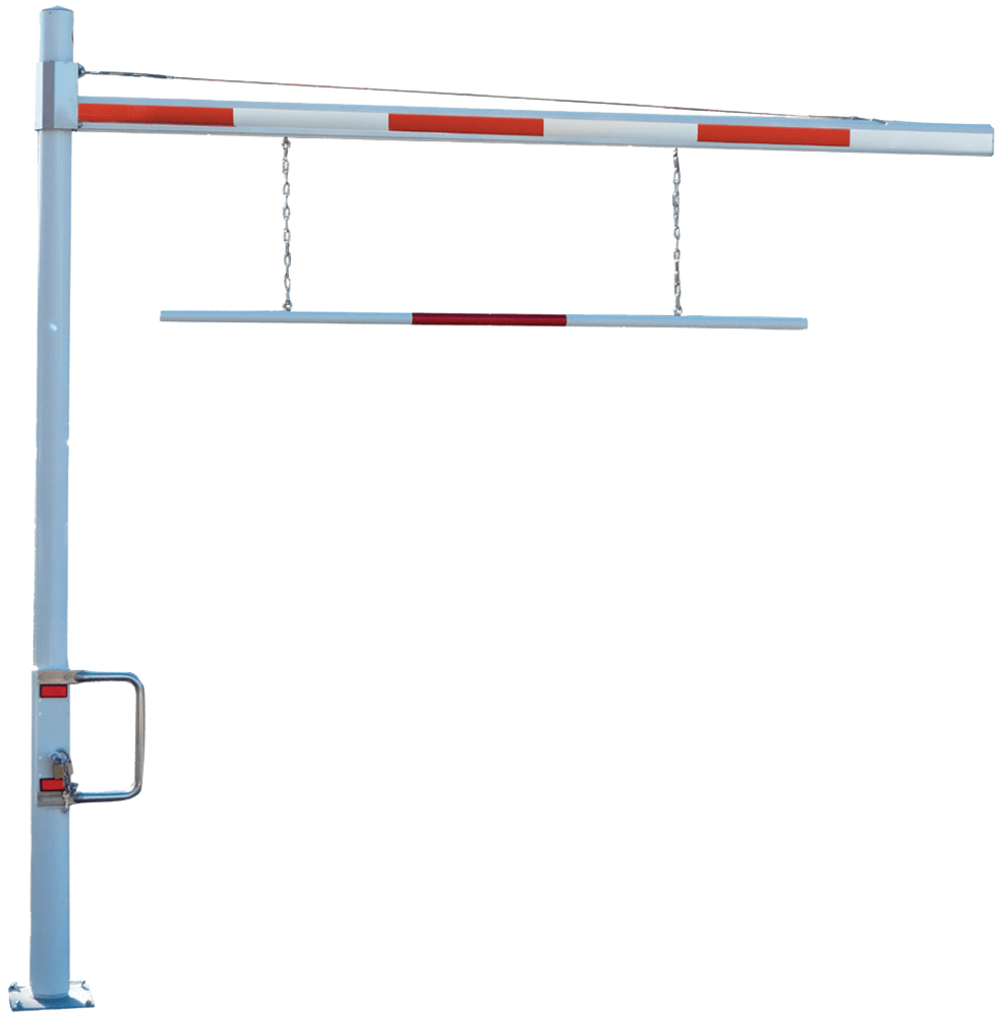

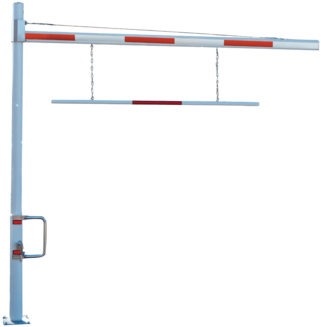

Dowel-on
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Height limiter Rotatable height limit HBS 50\')}')}
Set in concrete
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Height limiter Rotatable height limit HBS 50\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Height limiter Rotatable height limit HBS 50\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Height limiter Rotatable height limit HBS 50\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Height limiter Rotatable height limit HBS 50\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Height limiter Rotatable height limit HBS 50\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Height limiter Rotatable height limit HBS 50\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Height limiter Rotatable height limit HBS 50\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Height limiter Rotatable height limit HBS 50\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Height limiter Rotatable height limit HBS 50\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Height limiter Rotatable height limit HBS 50\')}')}

Dimensions & Order no.

Length Article no. (dowelled on) Article no. (set in concrete)
3,0 m 3-050-3000-0016 3-050-3000-0015
3,5 m 3-050-3500-0009 3-050-3500-0008
4,0 m 3-050-4000-0017 3-050-4000-0016
4,5 m 3-050-4500-0011 3-050-4500-0012
5,0 m 3-050-5000-0021 3-050-5000-0020
5,5 m 3-050-5500-0007 3-050-5500-0006
6,0 m 3-050-6000-0019 3-050-6000-0018

Accessories

  • Lock case profile cylinder for: turnstiles and height limitation and WES 31 and WES 41
  • Lock case profile cylinder and fire brigade triangle for: turnstiles and height limitation and WES 31 and WES 41
  • Simplex triangular lock extension set for turnstile and height limitation
  • Fire brigade triangular key standard
  • Extension set forced closing for turnstile and height limitation (only in connection with lock case)
  • Support for HBS50 for setting in concrete
  • Support for HBS50 to be dowelled on
  • Accessories: barrier suspension
