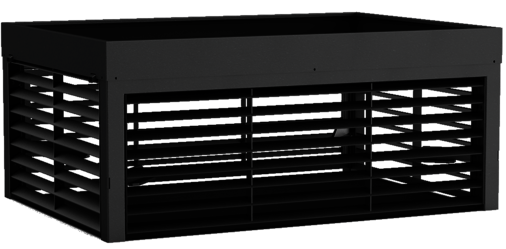

Ventilation shaft cover with plant cover and drainage
For the Airflow ventilation hood with plant cover and drainage, the motto is: modern. solid. multifunctional. The supply and exhaust air unit for underground garages, etc. can be planted individually and green and enliven places in public spaces.
| Material | steel, hot-dip galvanised, colour coated |
|---|---|
| Colours | full range of RAL or DB colour |

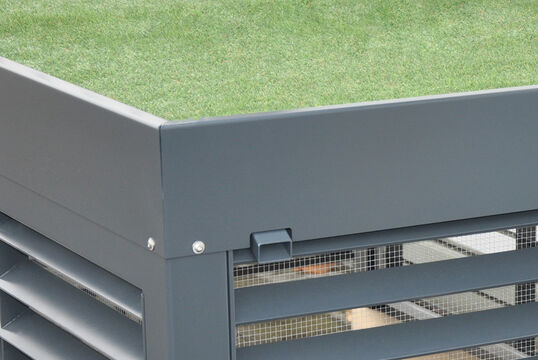

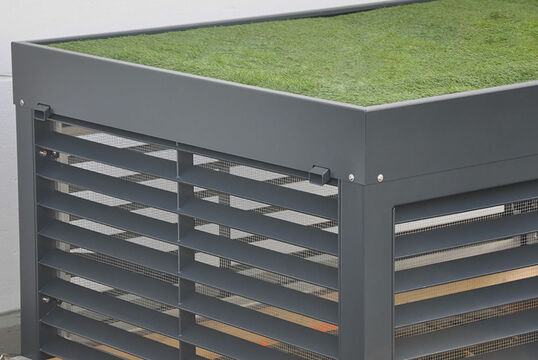

| Version | open on three or four sides, ventilation hood with cover for planting and lateral spout for drainage, circumferential slats and support posts, cover optionally also with wooden support as sitting platform, reclining platform or standard platform, inside with bird protection or small animal protection grille, on request with plinth panel |
| Dimensions | made-to-measure products accurate to the millimeter |
| Variants | combination of ventilation hoods and sitting or reclining platforms possible, on request with structural calculations |
| Service | on request assembly by our assembly teams, for an individual offer or text for invitation to tender please specify the existing or planned base measurements dimensions (inside and out) and state the required free cross-section. |
| Downloads | Product info (2 MB) Brochure ventilation bonnets (3 MB) |
References
Frankfurt, Amelia Mary Earhart Street
For the outdoor area of the EUROPA-CENTER Gateway Gardens in Frankfurt, the Airflow ventilation bonnets were integrated into the green area. Different versions were used to ventilate the underground car park. The Airflow H ventilation shaft covers with their wooden overlay and the Airflow with plant cover loosen up the overall appearance.
The Kalmar benches together with the Airflow H invite you to linger outside. Litter bins of the 724 series have also been installed.
Amelia-Mary-Earhart-Straße 11-13, 60549 Frankfurt am Main – Flughafen
Münster, Provincial House

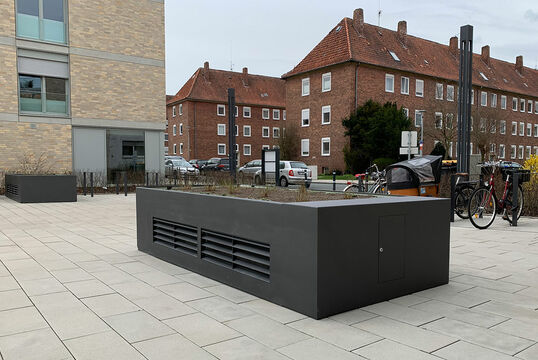

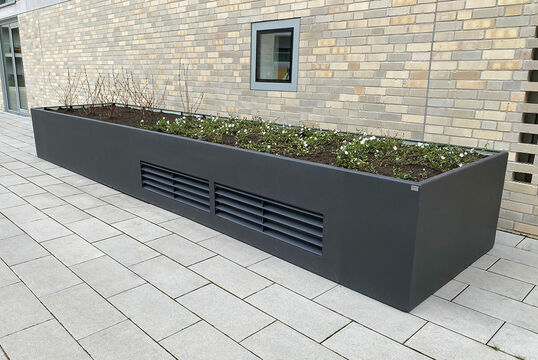

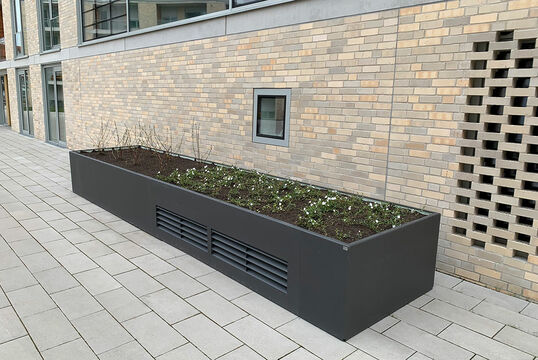

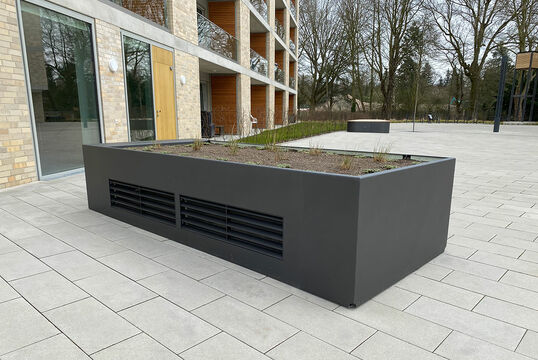

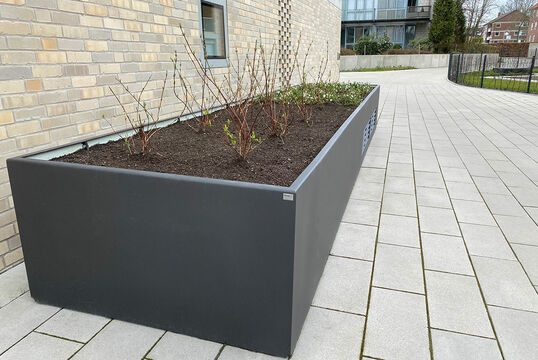

On the square in front of the provincial house of the religious community of the Sisters of Divine Providence, our Airflow ventilation bonnet with plant cover was installed and extended by our raised bed border. On the one hand, this ensured the ventilation of the underground car park and on the other hand, the extension created a large planting area.
In addition, the Airflow H ventilation bonnet was also extended with our raised bed edging, so that it became a homogeneous unit that invites you to linger with its wooden overlay.
Offenbergstraße 15, 48151 Münster
München, Egenhoferstraße 8-10
Airflow ventilation covers with planting lids were used in the gardens of new apartment blocks near the Pasing city park in Munich. Thanks to the planted surface, they blend beautifully into the gardens and at the same time ensure ventilation of the underground car park.
Egenhoferstraße 8-10, 81243 München
