Ventilation shaft cover Airflow 4-sided open

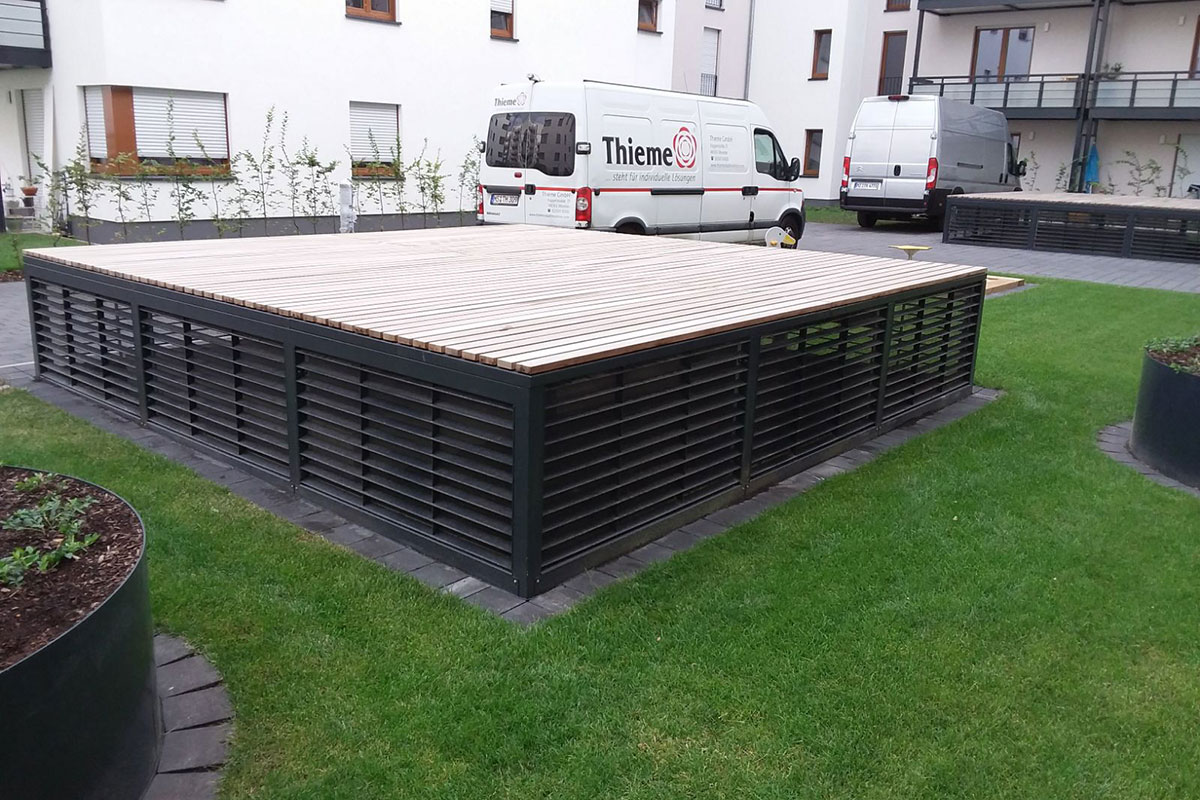

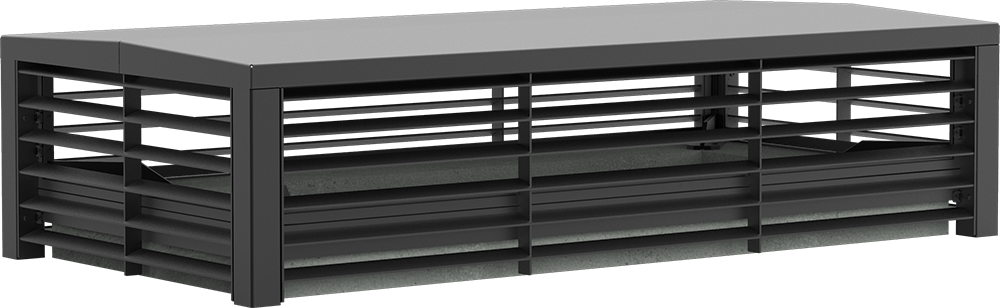

Modern. Solid. Multifunctional. This is how the design of the AirFlow ventilation cover could be described in a nutshell. In addition to its function as a supply and exhaust air device for underground garages, etc., the ventilation shaft cover in lamella design can also be used as a practical seating option with a wooden overlay, if desired. It not only offers protection in all weather conditions, but also sets visual accents.
| Material | steel, hot-dip galvanised, colour coated |
|---|---|
| Colours | full range of RAL or DB colours |
| Version | open on four sides, ventilation hood with cover plate, circumferential slats and support posts, cover optionally also with wooden support as sitting or reclining platform, inside with bird protection or small animal protection grille, on request with plinth panel |
| Dimensions | made-to-measure products accurate to the millimeter |
| Variants | combination of ventilation hoods and sitting or reclining platforms possible, on request with structural calculations |
| Service | for an individual offer or text for invitation to tender please specify the existing or planned plinth dimensions (inside and outside) and name the required free cross-section. |
| Downloads | Product info (3 MB) Brochure ventilation bonnets (3 MB) |
References
Frankfurt, Amelia Mary Earhart Street

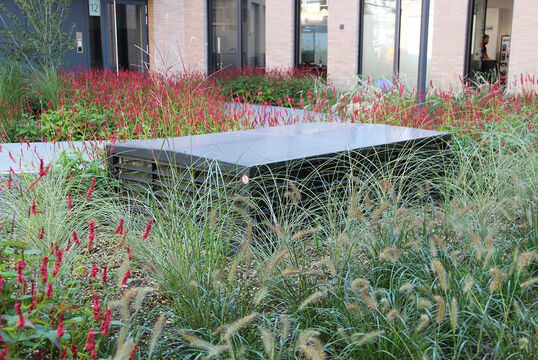

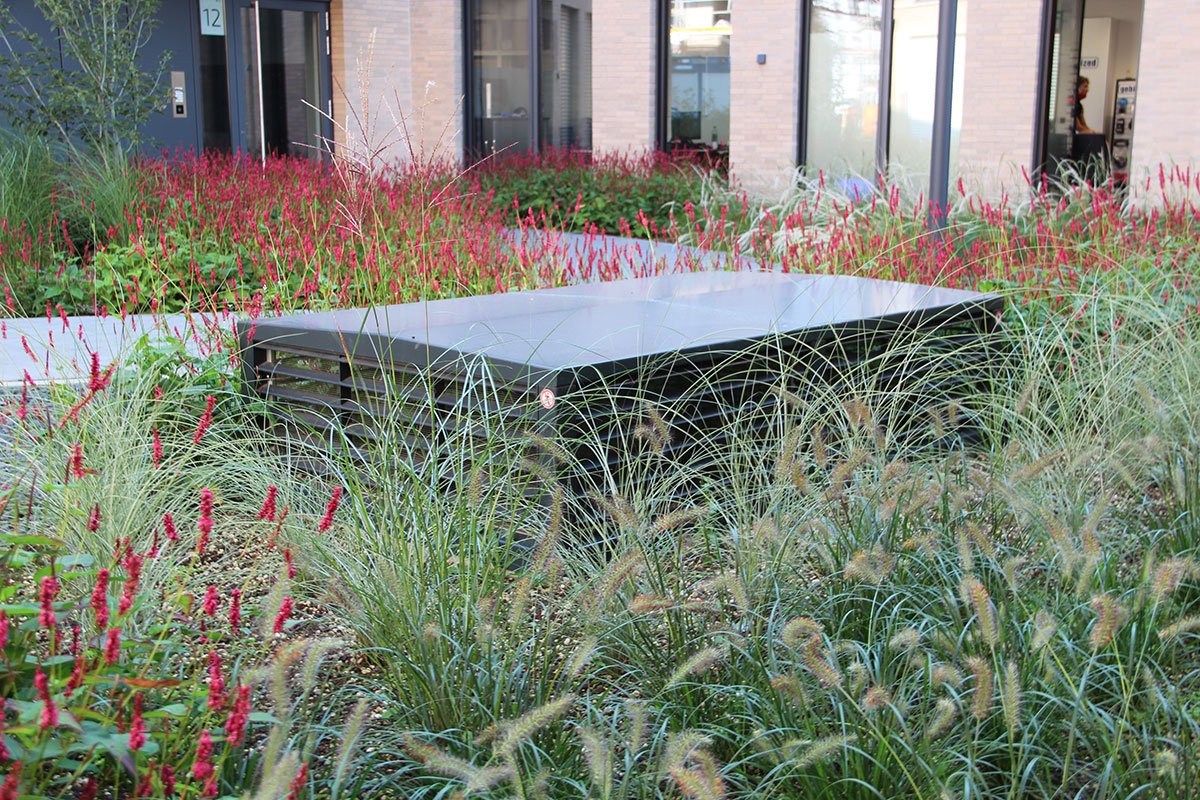

For the outdoor area of the EUROPA-CENTER Gateway Gardens in Frankfurt, the Airflow ventilation bonnets were integrated into the green area. Different versions were used to ventilate the underground car park. The Airflow H ventilation shaft covers with their wooden overlay and the Airflow with plant cover loosen up the overall appearance.
The Kalmar benches together with the Airflow H invite you to linger outside. Litter bins of the 724 series have also been installed.
Amelia-Mary-Earhart-Straße 11-13, 60549 Frankfurt am Main – Flughafen
Münster, Provincial House
On the square in front of the provincial house of the religious community of the Sisters of Divine Providence, the Airflow H ventilation shaft cover was installed in various forms. On the one hand, the ventilation shaft covers provide ventilation for the underground car park and on the other hand, they invite people to linger with their wooden supports.
In addition, the Airflow ventilation shaft cover with plant cover was installed. Both shapes were extended by a raised bed border so that they form a homogeneous unit.
Offenbergstraße 15, 48151 Münster
Münster, WSC

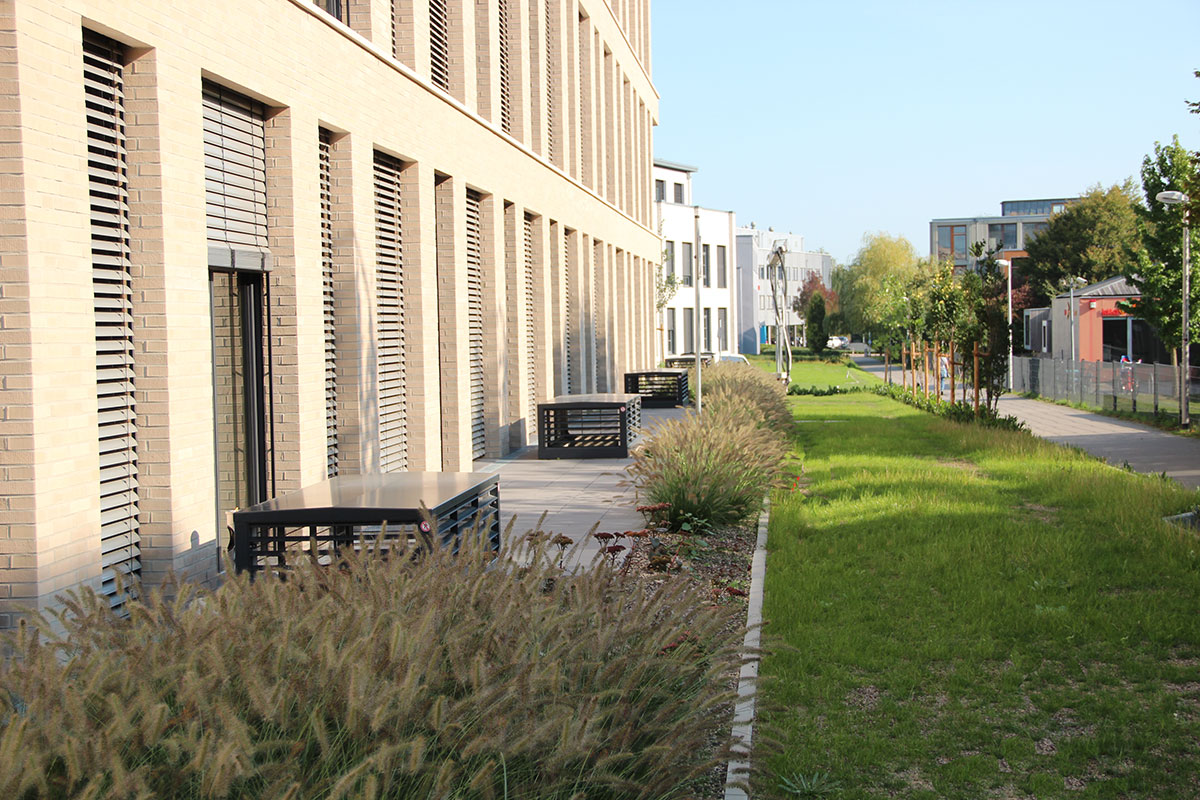

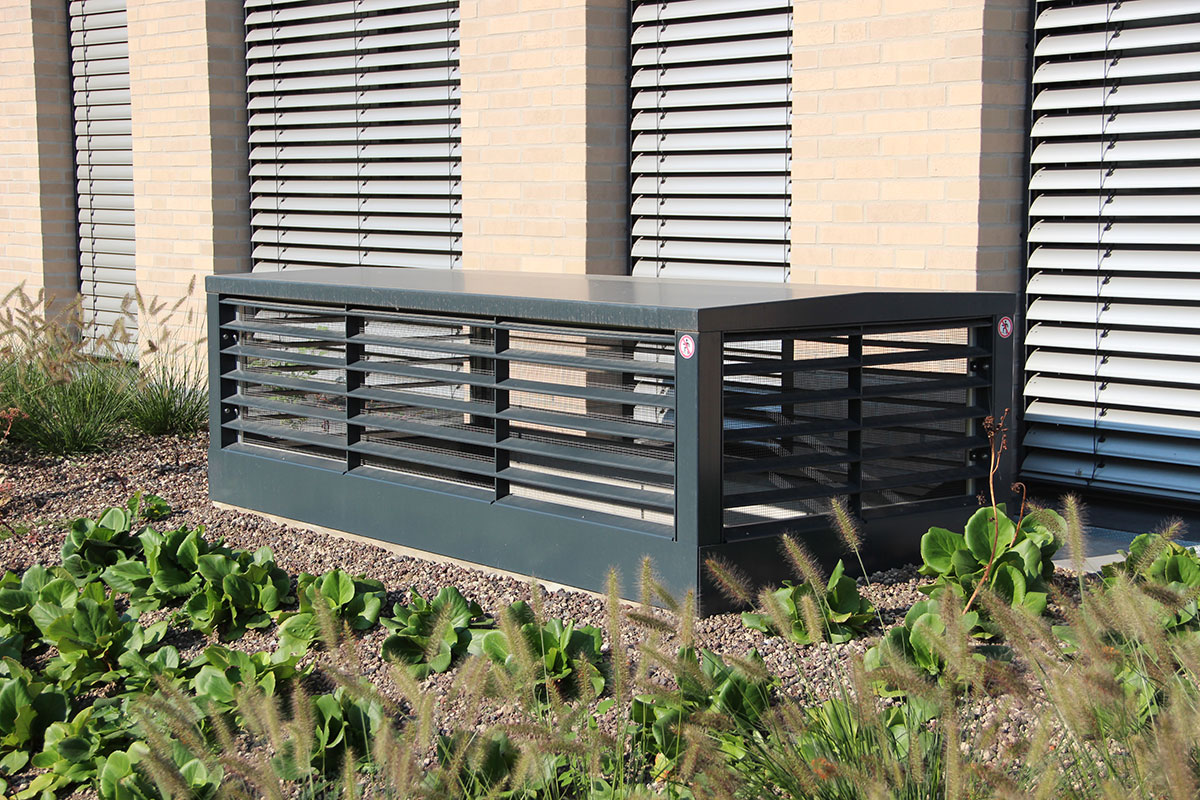

On the grounds of the newly built Wilhelm Schickard Campus, the Airflow ventilation bonnets were integrated into the space. With their elegant and unobtrusive design, they provide ventilation for the underground car park.
Wilhelm-Schickard-Straße 14, 48149 Münster
Hüfferstraße, Münster
In Münster, a total of eight beautifully designed ventilation shaft covers were delivered and installed for the ventilation system of the Hüfferstraße underground car park. One of these ventilation shaft covers has an integrated seat support and can thus also be used as a bench.
Hüfferstraße 66, 48149 Münster
Dimension Data, Bad Homburg

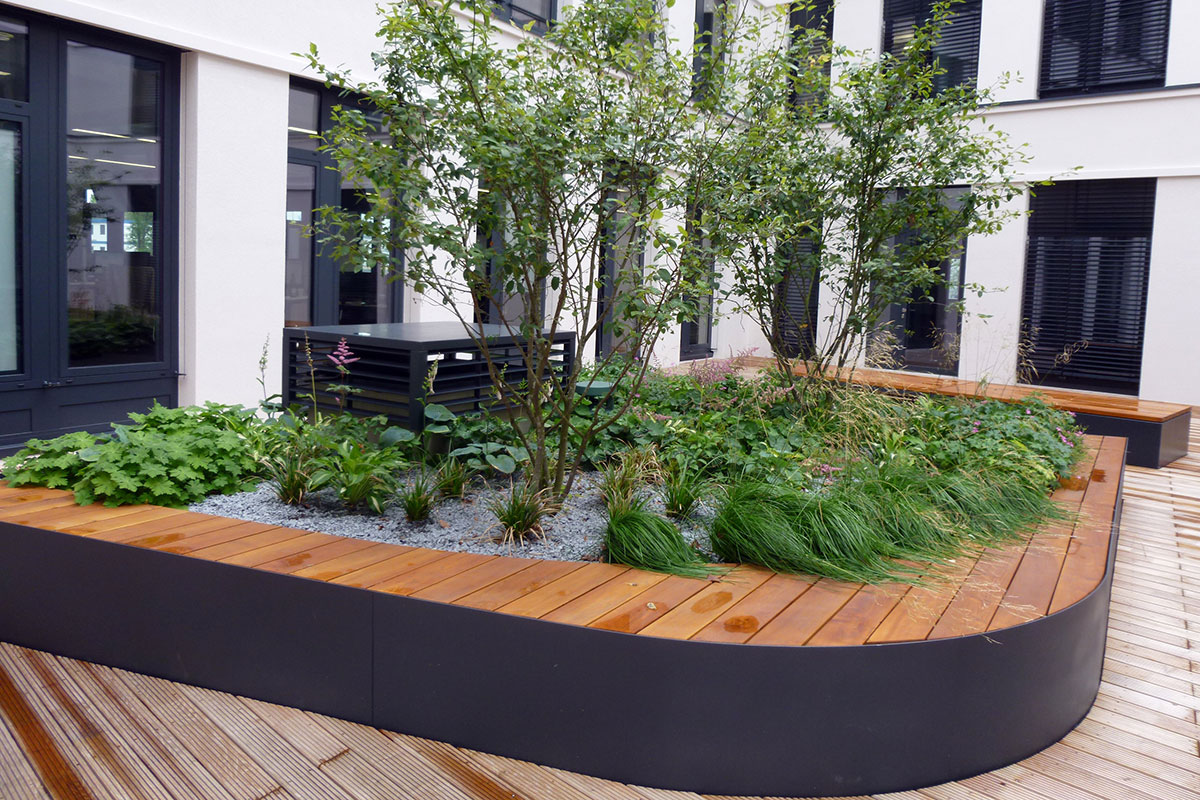

The ventilation shafts in the atrium of Dimension Data's German headquarters in Bad Homburg were fitted with beautifully designed ventilation bonnets from Thieme GmbH. One of these slatted bonnets has a bench seat and thus becomes an integral part of a seating element in special design.
Horexstraße 7, 61352 Bad Homburg
Rüsterstraße, Frankfurt
As part of the new construction of an office and administration building in Rüsterstraße 6 - 9 in Frankfurt, four ventilation shafts were covered with ventilation bonnets from Thieme GmbH. By installing a seat, one of these slatted bonnets can be used as an attractive, modern seating option.
Rüsterstr. 7, 60325 Frankfurt am Main
