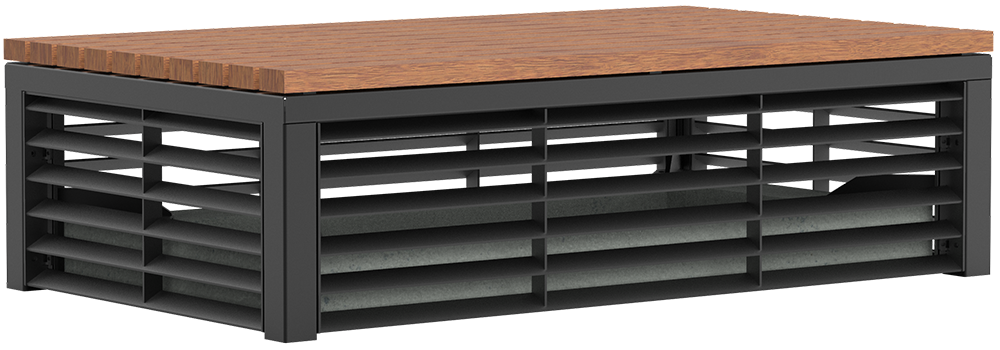

Ventilation shaft cover Airflow H

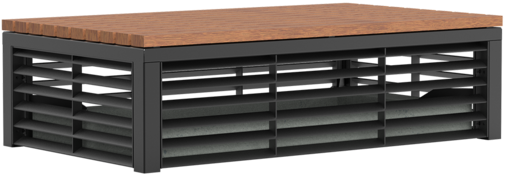

Modern. Solid. Multifunctional. This is how the design of the AirFlow H ventilation cover could be described in a nutshell. In addition to its function as a supply and exhaust air device for underground garages, etc., the ventilation shaft cover in lamella design can also be used as a practical seating option with a wooden overlay, if desired. It not only offers protection in all weather conditions, but also sets visual accents.
| Material | steel, hot-dip galvanised, colour coated, wooden top in douglas fir, oak or cambala |
|---|---|
| Colours | full range of RAL or DB colours available |
| Version | open on three or four sides, ventilation hood with cover plate, circumferential slats and support posts, cover optionally also with wooden support as sitting or reclining platform, inside with bird protection or small animal protection grille, on request with plinth panel |
| Dimensions | made-to-measure products accurate to the millimeter |
| Variants | combination of ventilation hoods and sitting or reclining platforms possible, on request with structural calculations |
| Service | for an individual offer or text for invitation to tender please specify the existing or planned base measurements dimensions (inside and out) and state the required free cross-section. |
| Downloads | Product info (3 MB) Brochure ventilation bonnets (3 MB) |
References
Berlin, Sachsendamm
In Berlin near Sachsendamm, Airflow H ventilation covers ensure that the underground car park below is well ventilated. At the same time, they serve as attractive seating for pedestrians.
Ella-Barowsky-Straße 29, 10829 Berlin
Frankfurt, Amelia Mary Earhart Street
For the outdoor area of the EUROPA-CENTER Gateway Gardens in Frankfurt, the Airflow ventilation bonnets were integrated into the green area. Different versions were used to ventilate the underground car park. The Airflow H ventilation shaft covers with their wooden overlay and the Airflow with plant cover loosen up the overall appearance.
The Kalmar benches together with the Airflow H invite you to linger outside. Litter bins of the 724 series have also been installed.
Amelia-Mary-Earhart-Straße 11-13, 60549 Frankfurt am Main – Flughafen
Münster, Provincial House

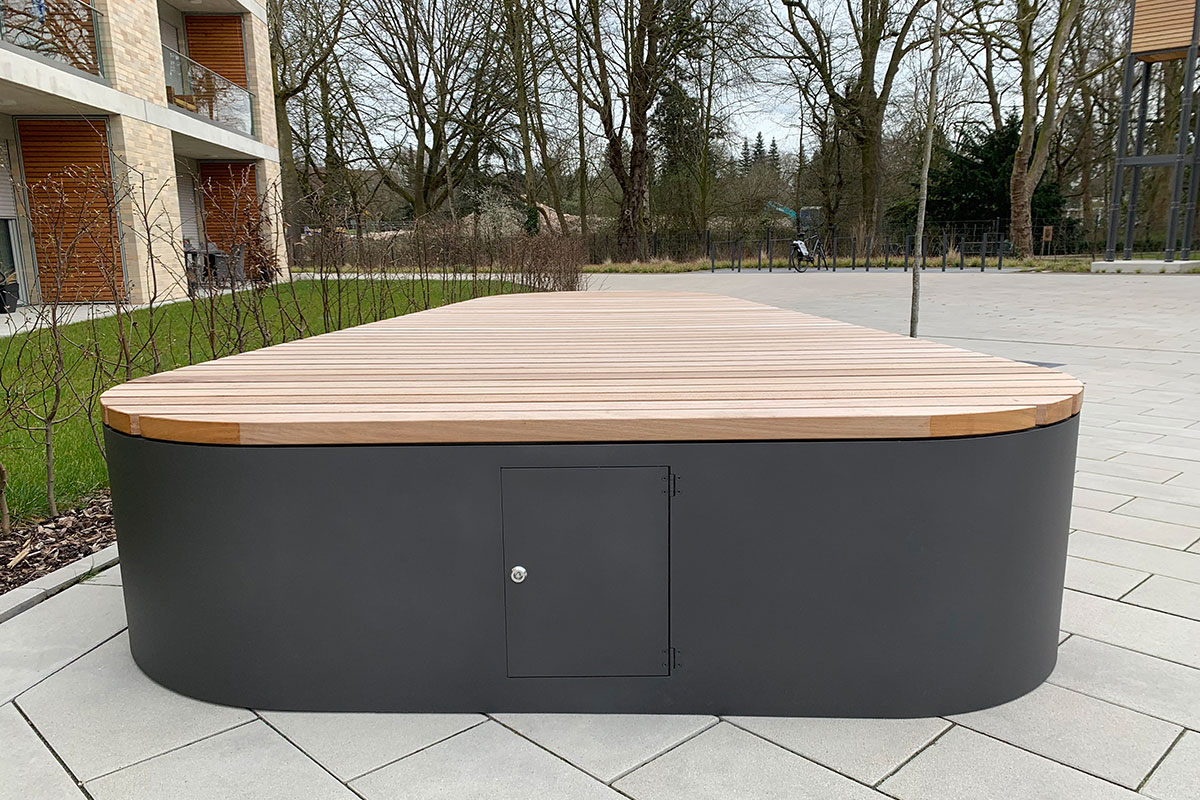

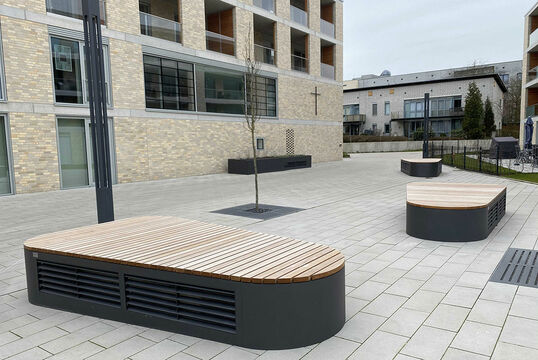

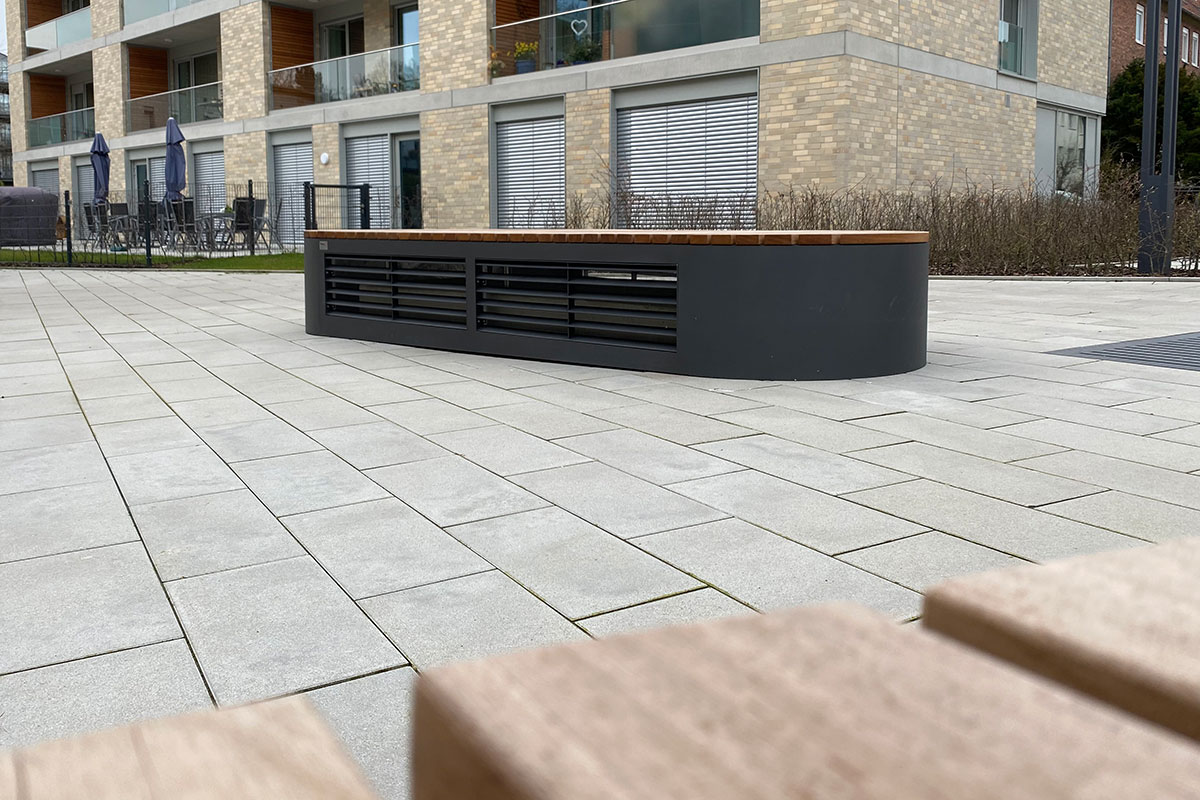

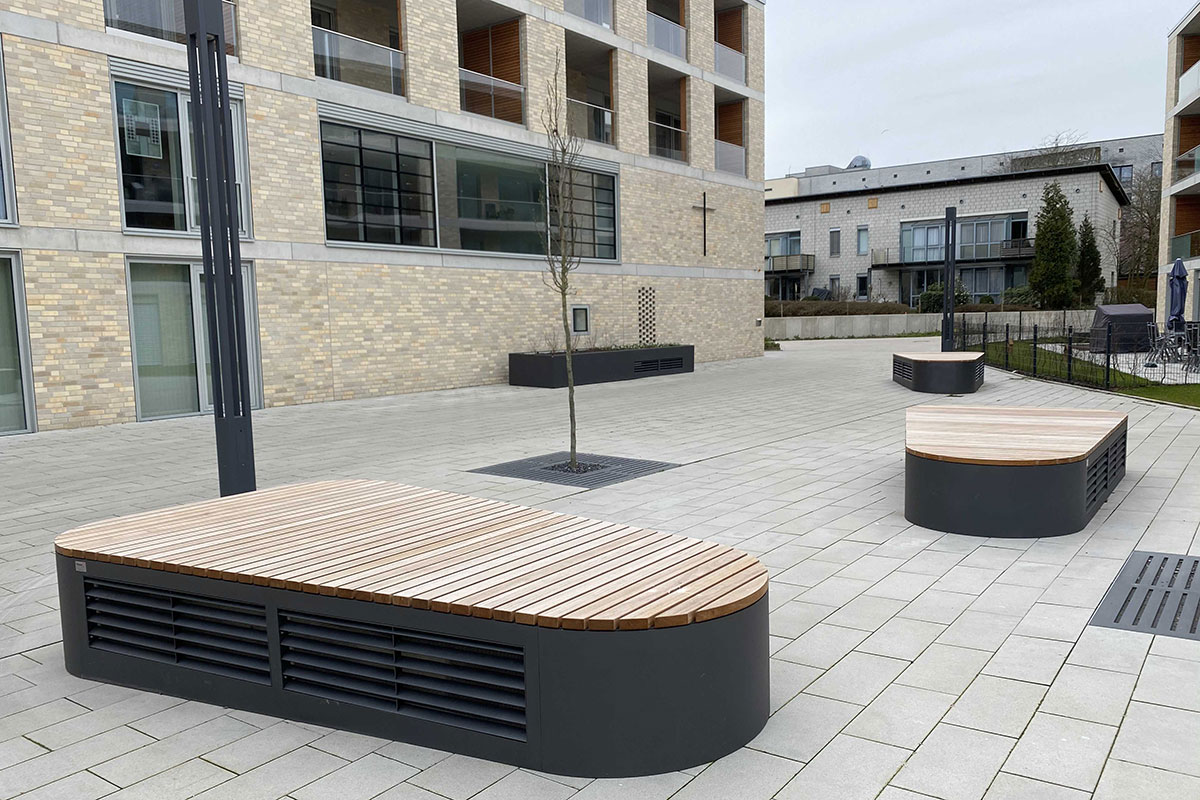

On the square in front of the provincial house of the religious community of the Sisters of Divine Providence, the Airflow H ventilation shaft cover was installed in various forms. On the one hand, the ventilation shaft covers provide ventilation for the underground car park and on the other hand, they invite people to linger with their wooden supports.
In addition, the Airflow ventilation shaft cover with plant cover was installed. Both shapes were extended by a raised bed border so that they form a homogeneous unit.
Offenbergstraße 15, 48151 Münster
Hamburg, Bergedorfer Tor

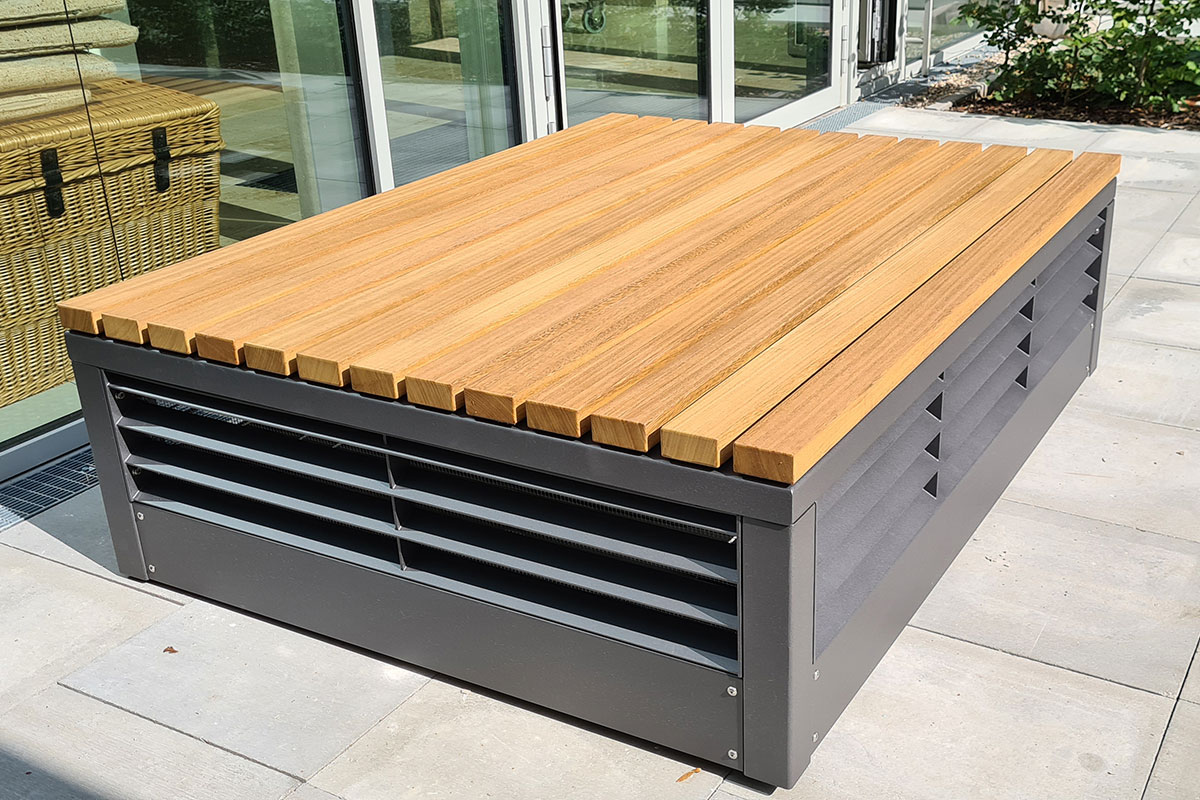

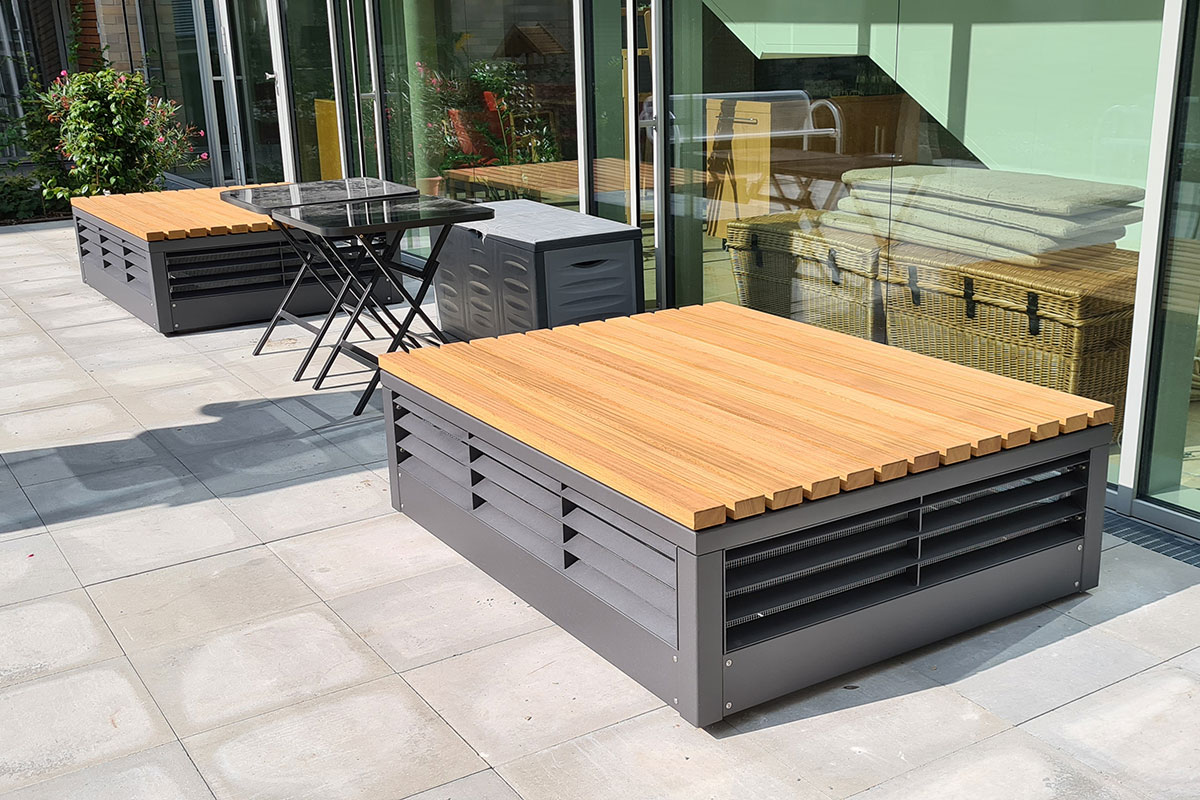

At Bergedorfer Tor in Hamburg, the Airflow H ventilation shaft cover was installed on an office building terrace. Employees can sit down on the wooden seat during their break and enjoy the view. At the same time, the ventilation shaft cover fulfils its purpose and also protects the shaft from rain.
Bergedorfer Straße, 21029 Hamburg
Potsdam, Marlene-Dietrich-Allee
In front of the Film Museum in Potsdam, Airflow H ventilation covers with wooden panels invite you to linger. At the same time, they ensure good ventilation of the underground car park and other underground areas.
Marlene-Dietrich-Allee 12, 14482 Potsdam
Wolfsburg, Hellwinkel
In the new residential area in Wolfburg Hellwinkel, the Airflow H ventilation bonnet integrates perfectly into the space. It stands at the edge of the access roads to the houses and thus offers a good opportunity for a short rest. At the same time, it fulfils its task as a ventilation bonnet.
Steimker Promenade, 38446 Wolfsburg
Riedpark, Lauchringen
In the newly developing Riedpark residential area in Lauchringen, the four Airflow H ventilation shaft covers provide a decorative opportunity to linger.
Riedpark, 78787 Lauchringen
Solios, Kirchzarten
In the new development area in Kirchzarten, three Airflow H ventilation covers were installed between the gardens of the new buildings. They ensure that the underground car park below is well ventilated. They also protect against rain and provide a practical seating area that integrates beautifully into the landscape.
Between Kirschenhof and Birnenhof, 79199 Kirchzarten
