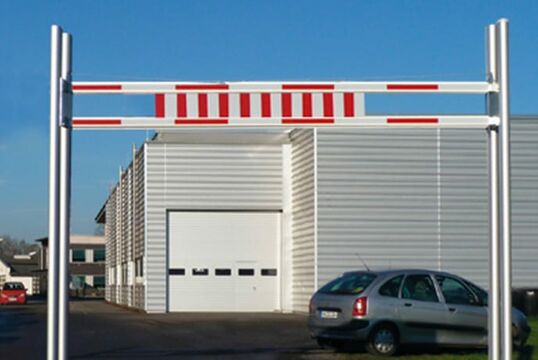

Rigid height limit HBS 200

Height limit with concreting adapter
  • Rigid height limit with a maximum clearance height of 4.2 m

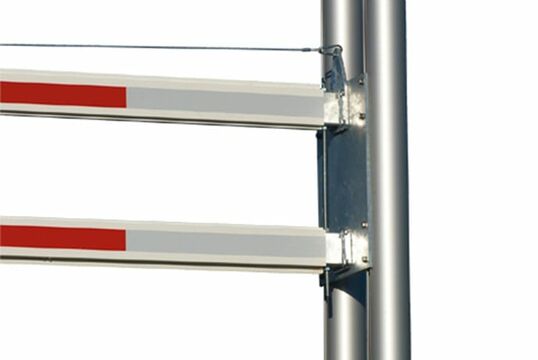

  • Supports made of double aluminum profile tube Ø 100 mm, silver anodized
  • All steel components hot-dip galvanized or made of stainless steel

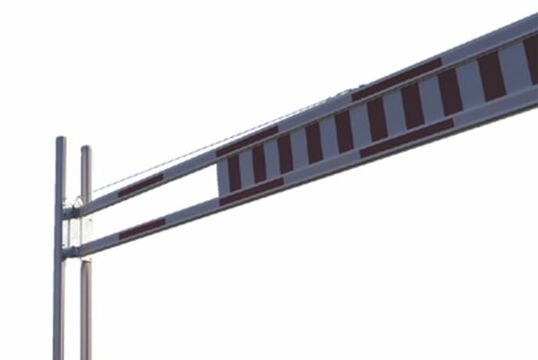

  • Aluminum barrier beams 86 x 46 mm with a groove for holding
  • signs or advertising media as well as a cable reinforcement from 7 m upwards
  • Multi-part barrier beam for longer lengths
  • Fixing by ground sleeves for setting in concrete
  • Type widths from 3,000 to 8,000 mm
  • Accessories: Barrier suspension
Downloads Product info (131 KB) Foundation plan (286 KB) Mounting instructions (438 KB)
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Height limiter Rigid height limit HBS 200\')}')}

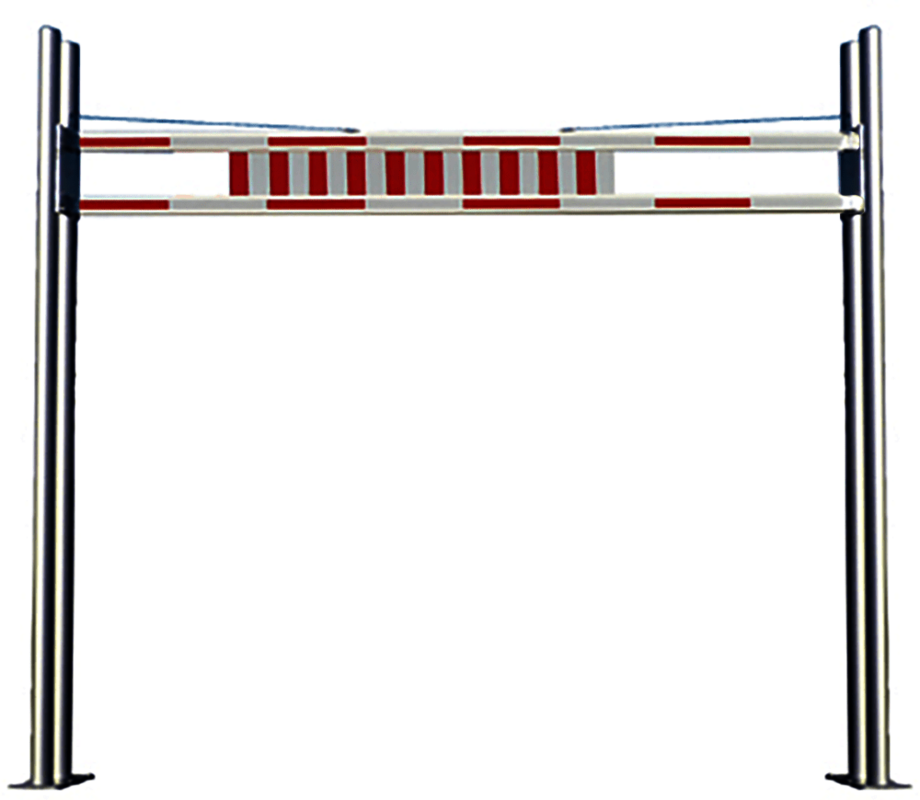

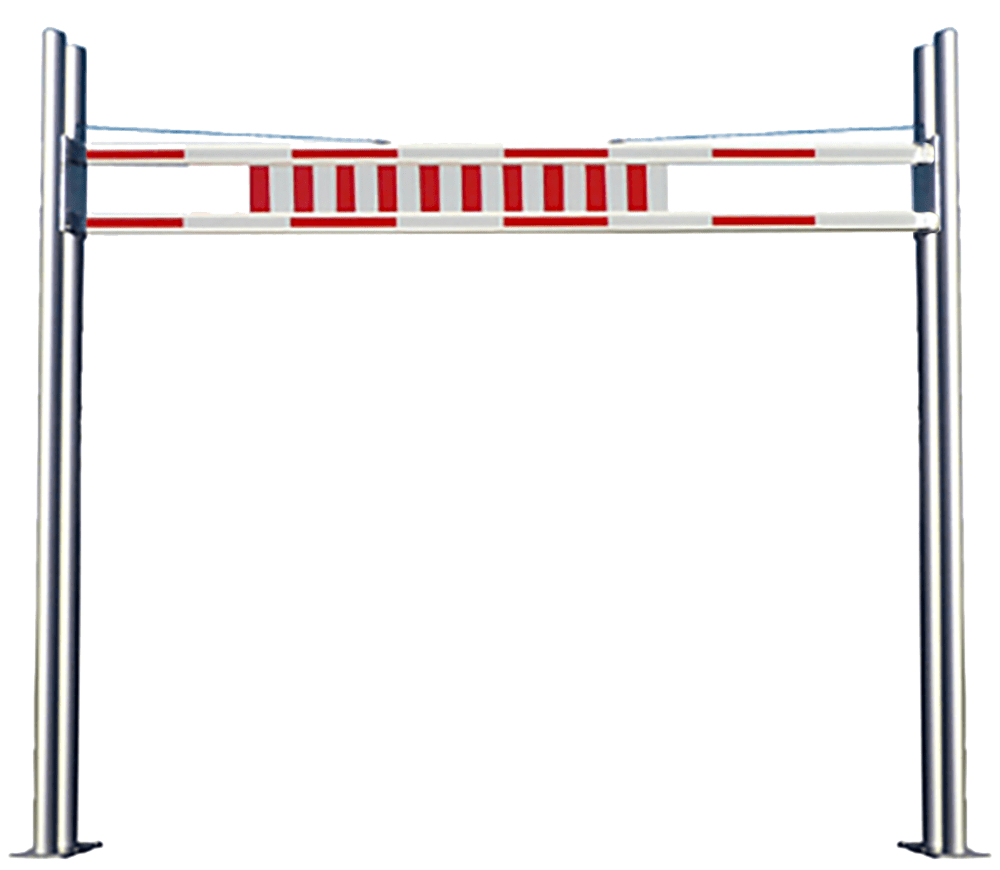

Dowel-on
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Height limiter Rigid height limit HBS 200\')}')}

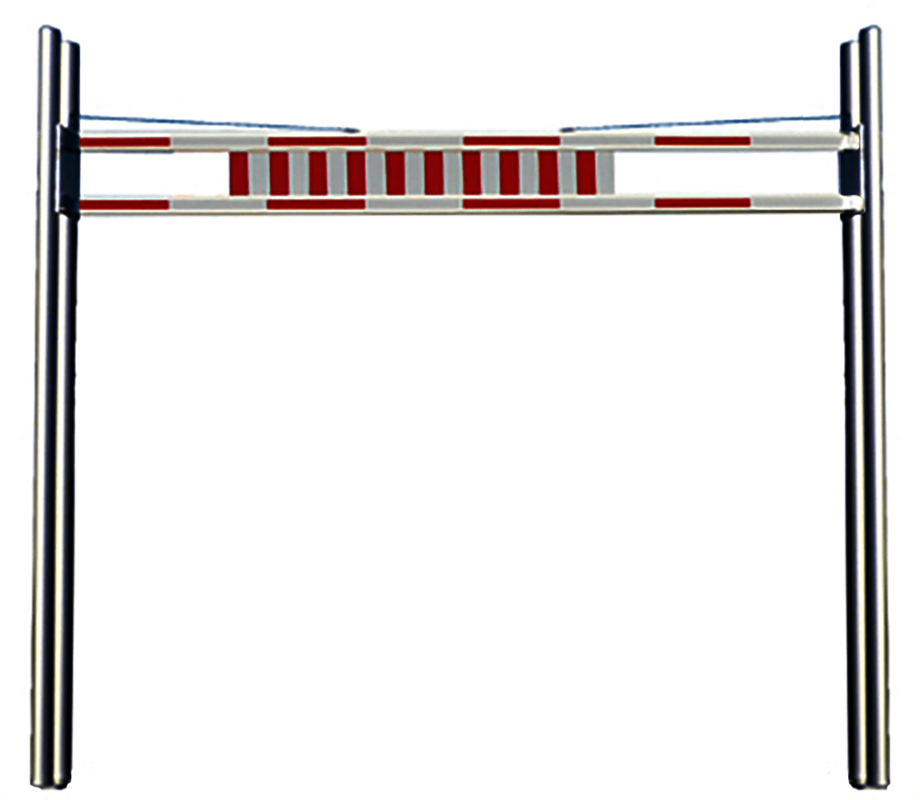

Set in concrete
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Height limiter Rigid height limit HBS 200\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Height limiter Rigid height limit HBS 200\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Height limiter Rigid height limit HBS 200\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Height limiter Rigid height limit HBS 200\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Height limiter Rigid height limit HBS 200\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Height limiter Rigid height limit HBS 200\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Height limiter Rigid height limit HBS 200\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Height limiter Rigid height limit HBS 200\')}')}

Dimensions & Order no.

Length Order no.
3,0 m 3-200-3000-0002
4,0 m 3-200-4000-0002
5,0 m 3-200-5000-0002
6,0 m 3-200-6000-0005
7,0 m 3-200-7000-0004
8,0 m 3-200-8000-0005
9,0 m 3-200-9000-0003
10,0 m 3-200-10000-0004
11,0 m 3-200-11000-0002
12,0 m 3-200-12000-0008

Accessories

  • Lock case profile cylinder for: turnstiles and height limitation and WES 31 and WES 41
  • Lock case profile cylinder and fire brigade triangle for: turnstiles and height limitation and WES 31 and WES 41
  • Simplex triangular lock extension set for turnstile and height limitation
  • Fire brigade triangular key standard
  • Extension set forced closing for turnstile and height limitation (only in connection with lock case)
  • Support for HBS50 for setting in concrete
  • Support for HBS50 to be dowelled on
  • Accessories: barrier suspension
