Passenger shelter Nottuln

Material

hot-dip galvanised steel, colour-coated, aluminium, laminated safety glass (VSG), toughened safety glass (ESG)
Colours all RAL‑ or DB-colours available
Version

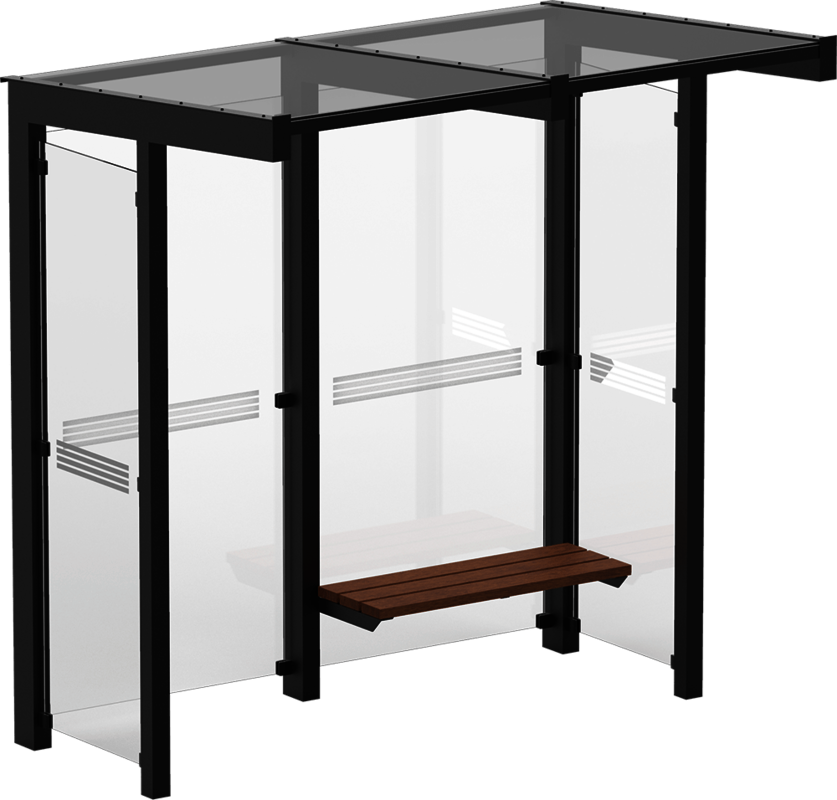

waiting hall with monopitch roof in steel and glass construction, tubular steel posts with attached roof construction of steel profiles, roof covering of laminated safety glass (VSG), side glazing as vestibule of toughened safety glass (ESG), with or without bench.
Accessories you will find suitable accessories in the Quadro, Scape or Cubo system such as: barrier posts, litter bins, bicycle stands, info systems, benches, supply bollards
Dimensions

standard grid: 1.25 m
clear height: 2.29 m
roof depth: 2.14

roof overhang: 0.62 m
Variants

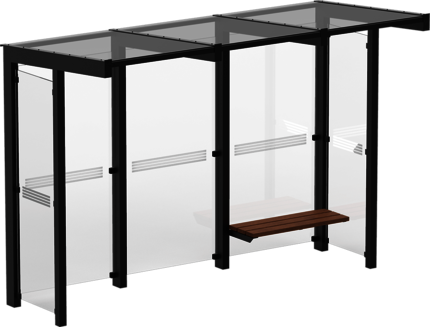

without side glazing, variable lengths, roof covering made of corrugated aluminium, polycarbonate, acrylic glass or by arrangement, side cladding alternatively sheet metal (aluminium, perforated sheet metal, ...) or laminated sheets (e.g. Trespa sheets)
Service individual object planning and consultation with customisation to your desired size, complete incl. assembly by our company
Downloads Product info (3 MB) Brochure roofings (14 MB)
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Passenger shelter Passenger shelter Nottuln\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Passenger shelter Passenger shelter Nottuln\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Passenger shelter Passenger shelter Nottuln\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Passenger shelter Passenger shelter Nottuln\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Passenger shelter Passenger shelter Nottuln\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Passenger shelter Passenger shelter Nottuln\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Passenger shelter Passenger shelter Nottuln\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Passenger shelter Passenger shelter Nottuln\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Passenger shelter Passenger shelter Nottuln\')}')}
{f:if(condition: '', then: '', else: '{f:if(condition:\'\', then:\'\', else: \'Passenger shelter Passenger shelter Nottuln\')}')}

References

Passenger shelter Nottuln

Nottuln, Darup

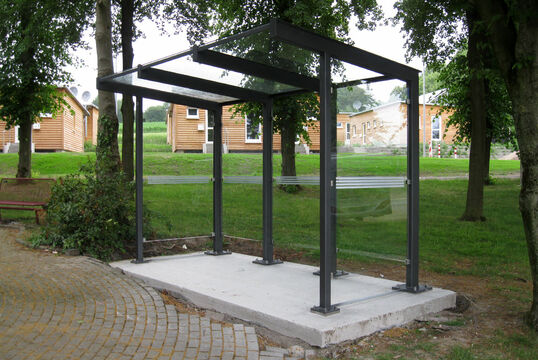

In summer 2021, another Nottuln-type bus shelter was installed in the Darup district of Nottuln. This is located near a school so that pupils can wait for the bus safely and in all weathers.

Wybbert 12, 48301 Nottuln

learn more
Nottuln, Darup
Passenger shelter Nottuln

Nottuln, Darup

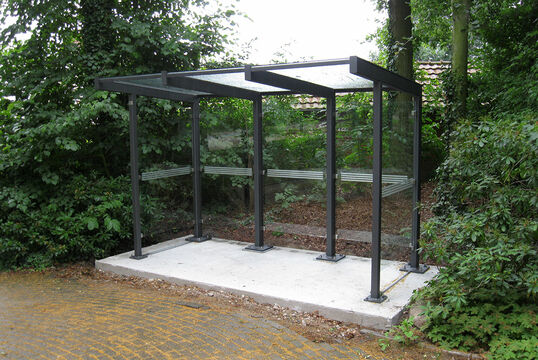

In June 2013, a Thieme bus shelter including a bench and two Mira bicycle stands were installed in the Darup district of Nottuln.

Roruper Straße 4, 48301 Nottuln

learn more
Nottuln, Darup
