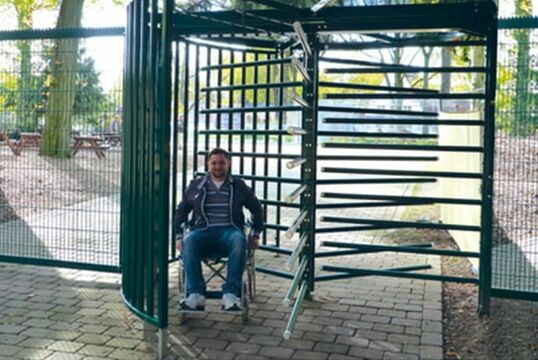

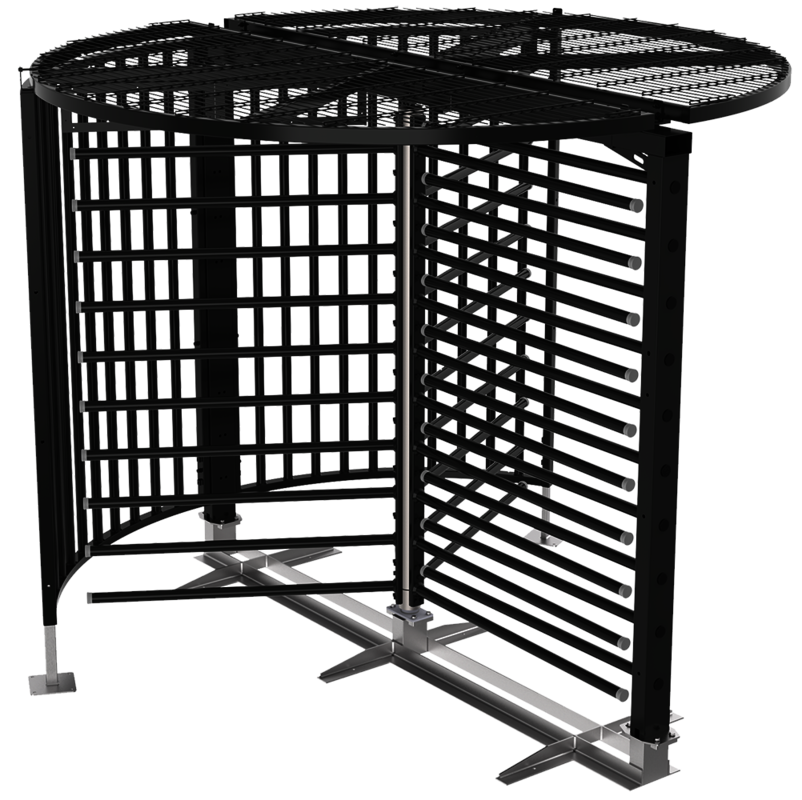

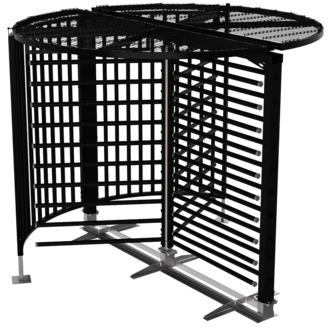

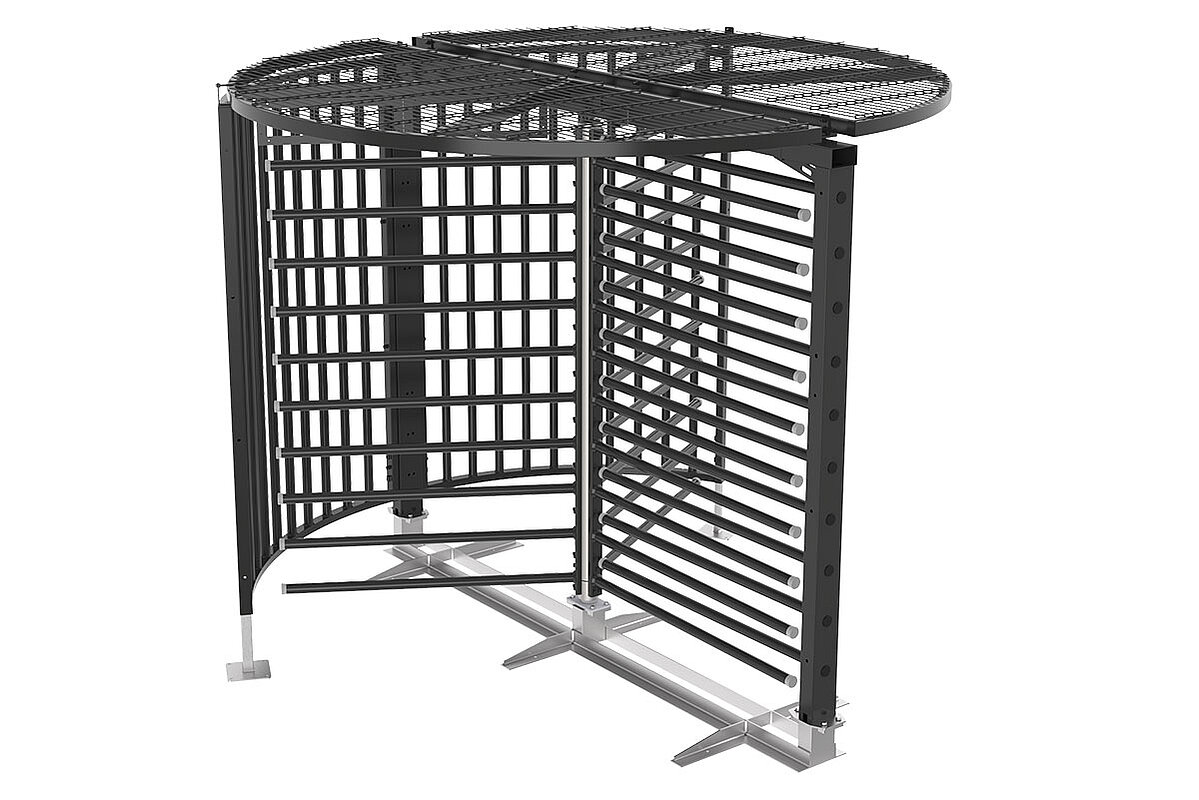

DK 43 handicapped accessible Ø 300 cm

Handicapped accessible cross in RAL color or natural galvanized (with or without climbing over protection)

Portal turnstile in one-third circle design with or without climbing over protection

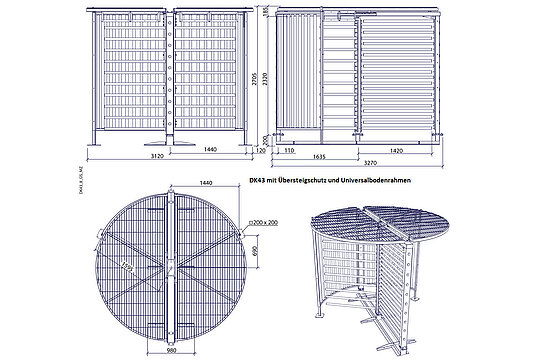

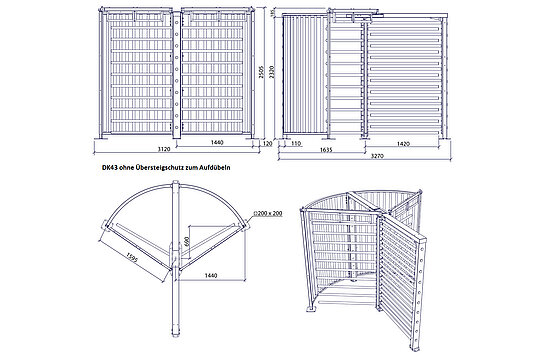

  • the passage width 1420 mm is suitable for bicycles and baby carriages
  • the passage height 2320 mm offers optimal safety for the tall people
  • the construction height 2505 mm or 2705 mm
  • extra heavy, solid steel construction (780 kg), galvanized or galvanized and powder coated
  • strongly increased vandalism resistance

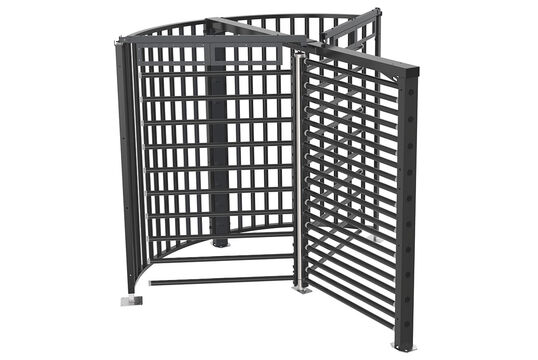

  • XXL climbing protection for significantly more difficult climbing over
  • industrial freewheel (backstop) with strong 1300 Nm max. torque
  • damped backstop destroys the stop energy
  • 3-position adjustable backstop system, left-locking, right-locking and freewheeling
  • maintenance-free bearings
  • currentless operation
  • locking lock for profile cylinder and/or fire department triangle as accessory
  • delivery: disassembled on wooden system pallet in few, pre-assembled large components
  • easy handling: no crane or similar required
  • quick assembly: 2 persons 2.5 hours each (without foundation work)
  • precise alignment with simple fastening: doweling on strip foundation
  • optimal surface design (paving, chippings, etc.) due to generous ground clearance (upper edge of foundation 160 mm below upper edge of finished floor)
Downloads Product info (347 KB)
