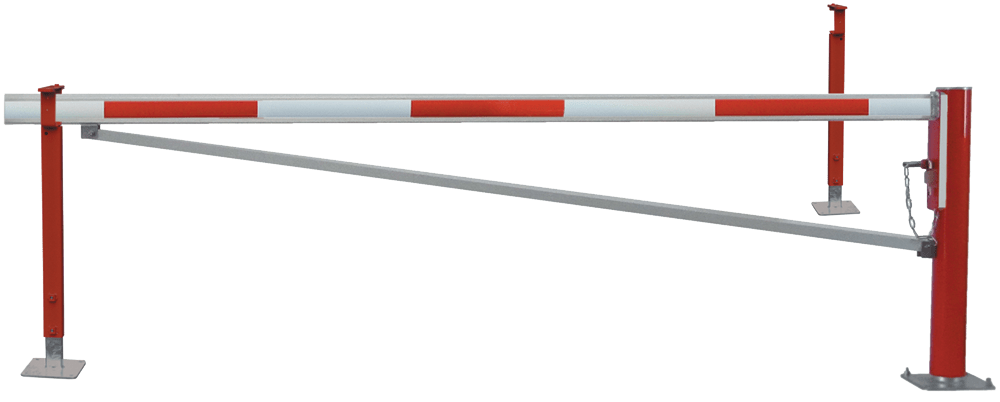

WES 105 with up and down support
Turnstile for dowelling or setting in concrete
- Horizontally rotating, all 90° lockable
- All steel components hot-dip galvanized or stainless steel
- Rotating support made of steel tube 121.0 x 4.0 mm
- Main support made of steel tube 101.6 x 2.9 mm
- One-piece aluminum barrier beam 86 x 46 mm, with anti-seat protection and sign/advertising baffle
- Two support legs +100/-100 mm adjustable in height, made of steel tube 70 x 40 x 3 mm
- Fixing by screwing on the floor plates 250 x 250 mm or setting the mounting cage in concrete
- Height above floor 1000 mm
- Various locking options on the supports, standard for padlocks
| Downloads | Product info (136 KB) Dowel-on (85 KB) set in concrete (81 KB) Mounting instructions (389 KB) |
|---|

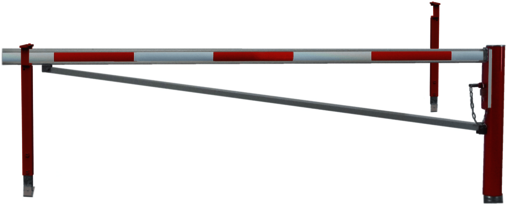

set in concrete

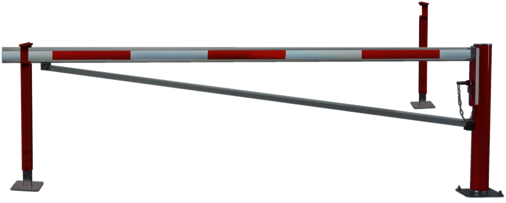

dowel-on
Dimensions & Order No.
| Length | Article no. (dowelled on) | Article no. (set in concrete) |
|---|---|---|
| 2,0 m | 3-105-2000-0003 | 3-105-2000-0004 |
| 2,5 m | 3-105-2500-0017 | 3-105-2500-0015 |
| 3,0 m | 3-105-3000-0025 | 3-105-3000-0023 |
| 3,5 m | 3-105-3500-0003 | 3-105-3500-0004 |
| 4,0 m | 3-105-4000-0019 | 3-105-4000-0010 |
| 4,5 m | 3-105-4500-0003 | 3-105-4500-0001 |
| 5,0 m | 3-105-5000-0009 | 3-105-5000-0007 |
| 5,5 m | 3-105-5500-0002 | 3-105-5500-0005 |
Accessories

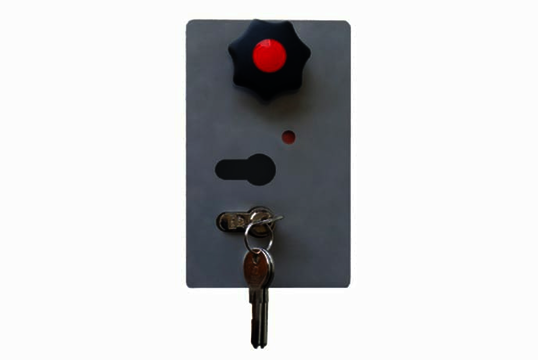

- Lock case profile cylinder for: turnstiles and height limitation and WES 31 and WES 41

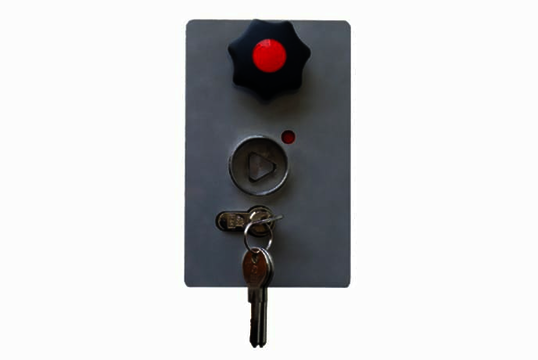

- Lock case profile cylinder and fire brigade triangle for: turnstiles and height limitation and WES 31 and WES 41
- Extension set forced closing for turnstile and height limitation (only in combination with lock case)
- Support for lock case Fire brigade triangle for vertical turnstiles
- Lock case support profile cylinder lock for vertical swing locks
- Extension set triangular lock Simplex for turnstile and height limitation
- Fire brigade triangular key standard
- Padlock 60 mm
