Power and water cabinet Modena SC
Its clear structure, minimalistic form and extreme robustness distinguish the power and water cabinet Modena SC from more traditional type power and water supply cabinets. With its minimalistic style, it blends in easily with any kind of environment.
| Material | steel hot-dip galvanised, colour coated |
|---|---|
| Colours | full range of RAL or DB colours available |

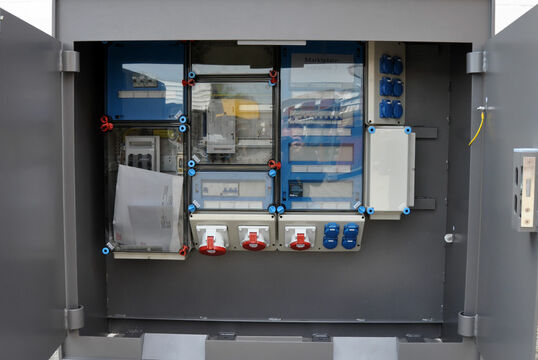

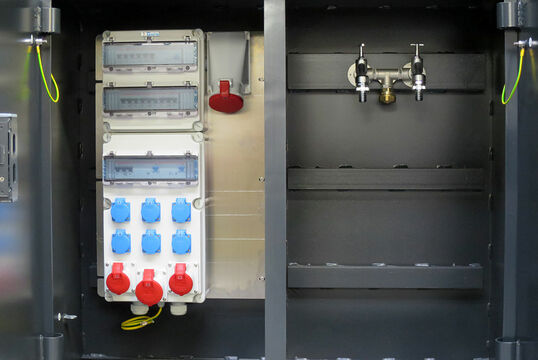

| Version | ground anchor for concrete casting (slope compensation), access hole to allow cables/hoses to pass through locked door, with integral lock for cylinder provided by the customer, integration of power supply or fresh water supply, technical equipment depending on individual requirements |
| Accessories | waste receptacles, barrier posts, railings |
| Dimensions | W x H x D 700 x 1150 x 500 mm | 1300 x 1150 x 500 mm | or adapted to your suit requirements, as a double cabinet: 2200 x 1800 x 500 mm | 3200 x 1800 x 500 mm |
| Downloads | Product info (1 MB) |
Variants

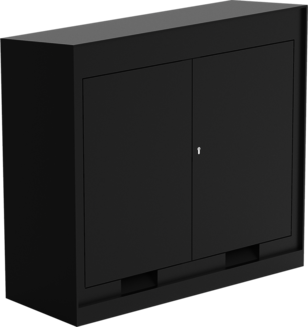

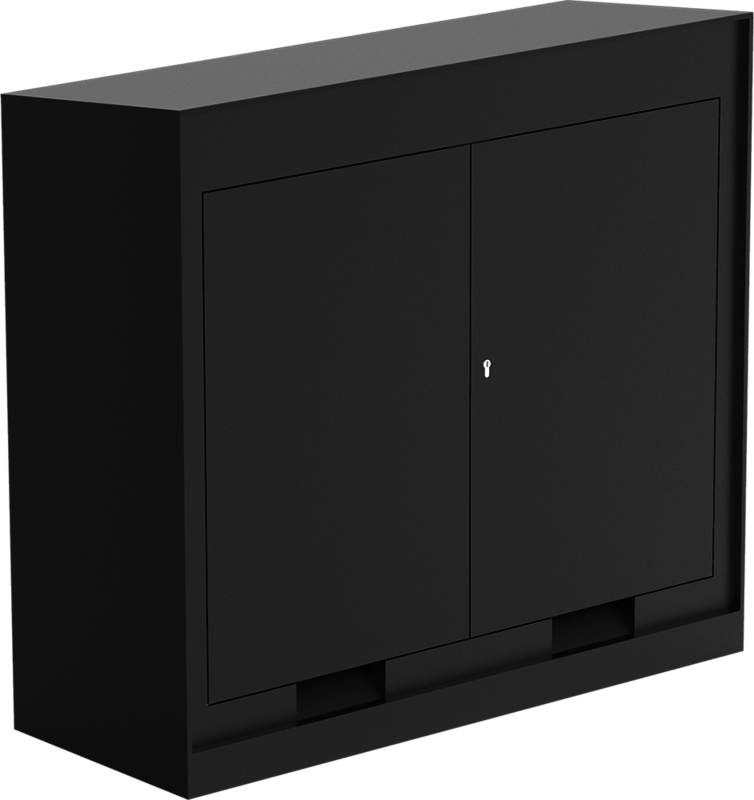

Size example supply cabinet Modena SC, 270x180x75 cm
References
Berlin, Olivaer Square
In Berlin at Olivaer Platz, Modena supply cabinets were installed together with Mora supply bollards for the power supply. Thanks to the cable feed-throughs, they can also be operated when closed.
Olivaer Platz, 10707 Berlin
Baakenhafen

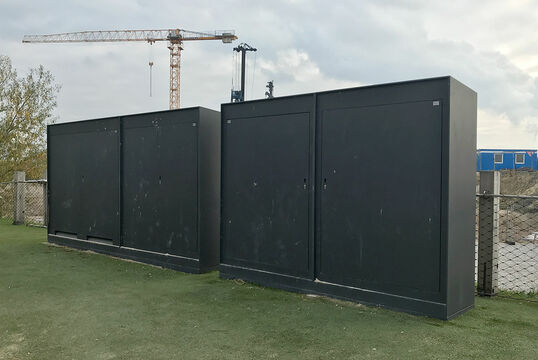

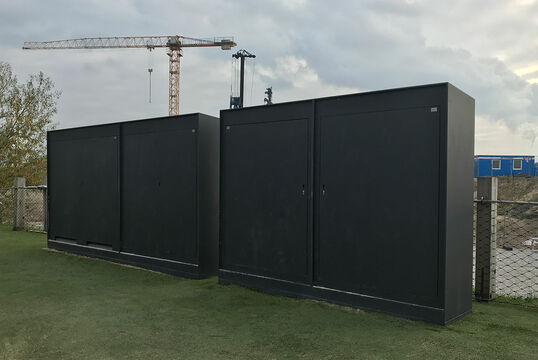

In Baakenhafen harbour in Hamburg, 2 custom-built Modena SC supply cabinets provide the construction site with water and electricity.
Baakenallee, 20457 Hamburg
Bitscher Platz, Lebach

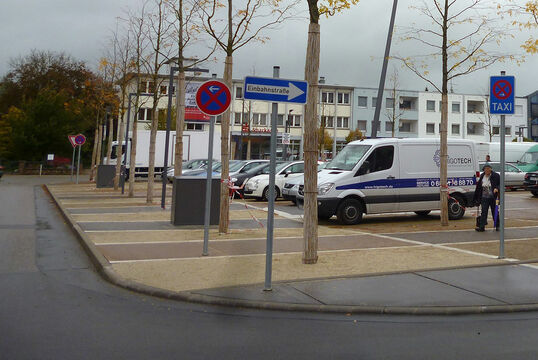

In the course of the redesign of the Bitscher Platz in the south of the city center of Lebach, 6 power and water cabinets of the Modena type were set up on the multifunctional area used as a car park, fairground and market square.
Bitscher Platz, 66822 Lebach
Augustdorf

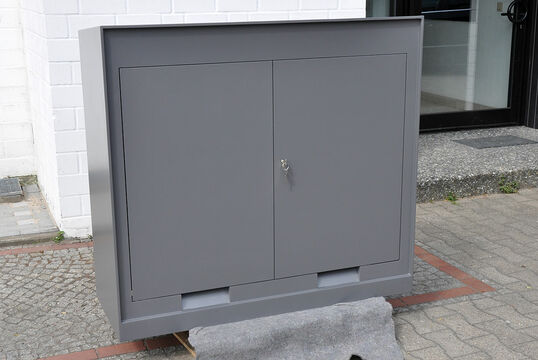

The Modena SC supply cabinet was specially manufactured for an Augustdorf customer.
Imkerweg 30a, 32832 Augustdorf
Heiden
The municipality of Heiden received 2 Modena SC supply cabinets with water and power supply.
46359 Heiden
